Stitch -N- Glue Pro

Download the latest version here: Stitch -N- Glue Pro
Please read the installation instructions carefully: Here

Current version: 1.4.1 g

Requirements: Windows
Release date: 4-1-2022

Software price:       Free for Trial

                      $150 for Standard License
                      $1000 for Commercial License
                      $700 for Upgrade License


You do not need a PayPal account to purchase the software via PayPal.


Software Features:

   • Automated activation with PayPal
   • English or metric units
   • Undo / Redo

   • Export 2D DXF plates for CNC panel cutting (Commercial License)

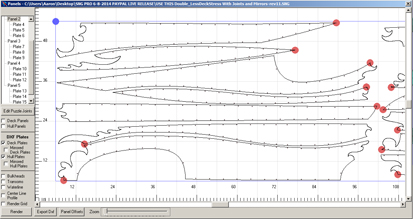

   • Divide panels using freeform puzzle joints (Commercial License)

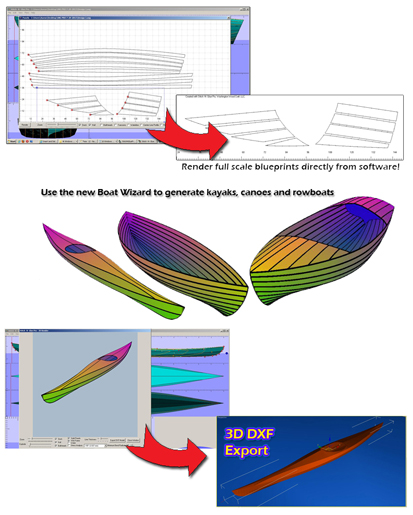

   • Render full length and scale model blueprints directly from the software!
   • Export panel offsets for lofting by hand

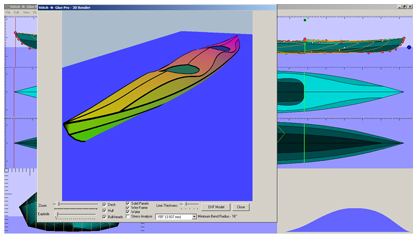

   • Export 3d DXF models (Commercial License)

   • Generate Kayaks, Canoes and Row Boats using the Row Boat Wizard

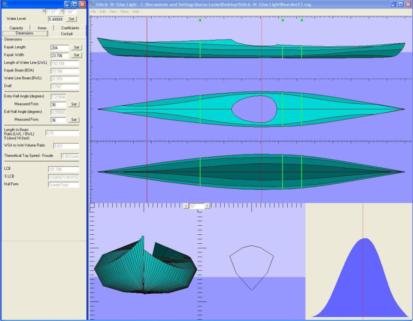

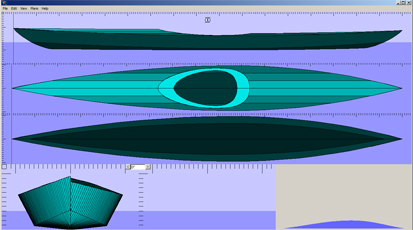

   • Customizable View Ports: Side, Top, Bottom, Body Plan,
                          Current Section, Volume Distribution
   • Spline editing with control (tangent) handles
   • 2D panel layout

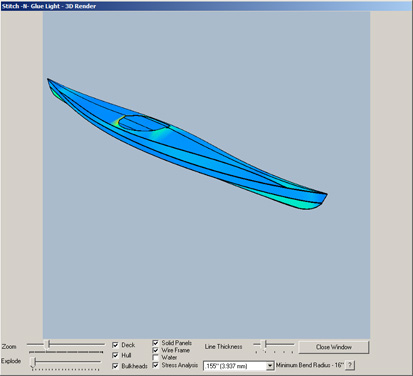

   • 3D view with panel stress analysis
   • Adjustable water level
   • View water line/hull intersection
   • View buttocks lines
   • Zoom view
   • View in solid or wire frame mode
   • Adjustable length and beam and height
   • Adjustable number of stations
   • Adjustable stitch marks (length and distance between)
   • Adjustable number and position of bulkheads
   • Create single or tandem kayaks
   • Automatic cockpit positioning based on LCB and CG
   • Adjustable cockpits
         • Length and width
         • Aft to center of gravity


   • Hydrostatic calculations:
         • Length of water line
         • Water line beam
         • Draft
         • Half angles (entry and exit)
         • Length to beam ratio
         • Wet surface area to wet volume ratio
         • Theoretical top speed
         • Longitudinal center of buoyancy LCB
         • %Longitudinal center of buoyancy LCB %
         • Longitudinal center of flotation LCF
         • %Longitudinal center of flotation LCF %
         • Hull form (Fish form and Swede form)
         • Kayak weight
         • Target displacement
         • Design displacement
         • Total volume
         • Wet volume
         • Total surface area
         • Wet surface area
         • Water plane area
         • Max wet cross section area
         • Cockpit front and rear depths
         • Drag calculations
         • Coefficients
              • Block (Cb)
              • Prismatic (Cp)
              • Mid ship (Cm)
              • Water plane (Cwp)
